KeyShot Studio with Hololight Stream

Objectives

  • Be able to use KeyShot Studio with Hololight Stream.

Prerequisites

  • Hololight Stream

  • KeyShot Studio

KeyShot Studio

KeyShot Studio is an industrial 3D visualizer.

For more information on KeyShot Studio, check out https://www.keyshot.com/keyshot-studio/.

Configure KeyShot Studio to work with Hololight Stream

1. Install and set up Hololight Stream

  1. Install Hololight Stream.

  2. Open Hololight Stream on your computer.
    hololight stream desktop home

  3. Select your XR device in the dropdown menu.
    Screenshot of selecting a device with Hololight Stream on a Windows computer

  4. Under Home > Connection, note the IP address. You will use this IP address on your XR device to connect.

2. Set up KeyShot Studio

  1. Open KeyShot Studio.

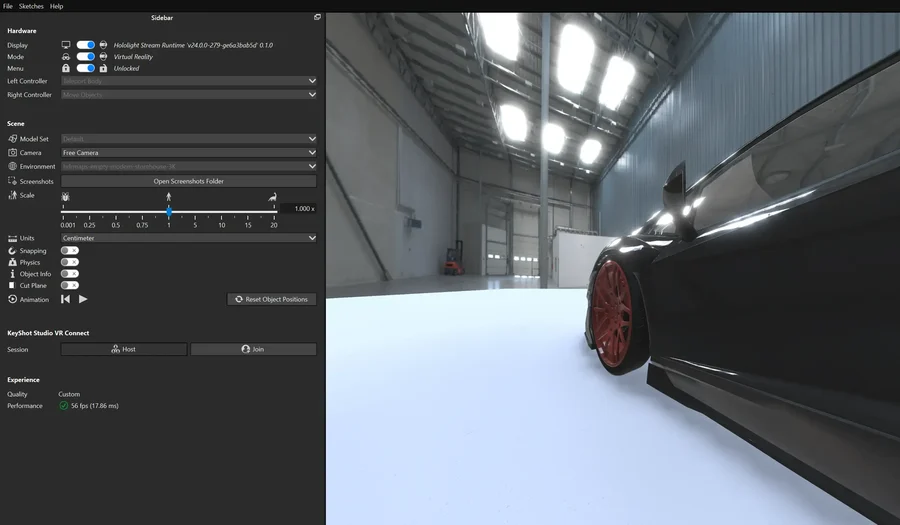

    Screenshot of KeyShot Studio

  2. Open your scene.

  3. Select VR at the bottom of the application. This launches KeyShot Studio VR.

  4. Select KeyShot Studio VR Connect > Session > Host.

3. Connect to the application

  1. Open Hololight Stream on your supported XR device.

  2. Enter the IP address that Hololight Stream shows on your computer and select Connect.
    Screenshot of Hololight Stream
